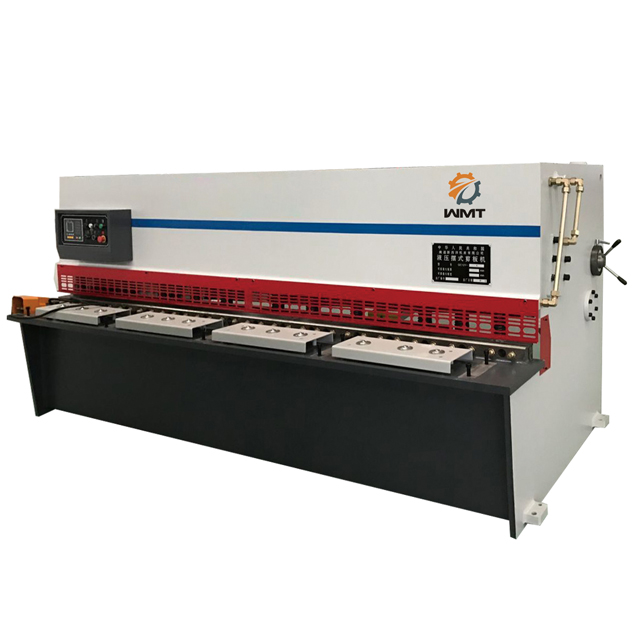

QC12Y-4X2000
WMT
| Cantidad: | |
|---|---|
Descripción del producto
caracteristicas:
1. tipo hidráulico máquina viga del columpio
2. La operación simple
3. Fácil para trabajar
4. Conozca a su necesidades de fabricación cuando los cortes rápidos y flexiable son de la demanda
| Especificación | Espesor de cizalla | Ancho de cizalla | Corte de perfiles | Número de accidente cerebrovascular | La escuadra trasera Rang | Potencia del motor |
| mm | mm | (°) | min-1 | mm | kw | |
| QC12Y-4 × 2500 | 4 | 2500 | 1 ° 30" | 20 | 20 ~ 600 | 4 |
| QC12Y-4 × 3200 | 4 | 3200 | 1 ° 30" | 18 | 20 ~ 600 | 5.5 |
| QC12Y-4 × 4000 | 4 | 4000 | 1 ° 30" | 18 | 20 ~ 600 | 5.5 |
| QC12Y-6 × 2500 | 6 | 2500 | 1 ° 30" | 18 | 20 ~ 600 | 7.5 |
| QC12Y-6 × 3200 | 6 | 3200 | 1 ° 30" | 14 | 20 ~ 600 | 7.5 |
| QC12Y-6 × 4000 | 6 | 4000 | 1 ° 30" | 14 | 20 ~ 600 | 7.5 |
| QC12Y-6 × 5000 | 6 | 5000 | 1 ° 30" | 10 | 20 ~ 800 | 11 |
| QC12Y-6 × 6000 | 6 | 6000 | 1 ° 30" | 10 | 20 ~ 800 | 11 |
| QC12Y-8 × 2500 | 8 | 2500 | 1 ° 30" | 14 | 20 ~ 600 | 7.5 |
| QC12Y-8 × 3200 | 8 | 3200 | 1 ° 30" | 10 | 20 ~ 600 | 7.5 |
| QC12Y-8 × 4000 | 8 | 4000 | 1 ° 30" | 8 | 20 ~ 600 | 7.5 |
| QC12Y-8 × 5000 | 8 | 5000 | 1 ° 30" | 7 | 20 ~ 800 | 11 |
| QC12Y-8 × 6000 | 8 | 6000 | 1 ° 30" | 6 | 20 ~ 800 | 15 |
| QC12Y-10 × 2500 | 10 | 2500 | 1 ° 30" | 14 | 20 ~ 800 | 11 |
| QC12Y-10 × 3200 | 10 | 3200 | 1 ° 30" | 12 | 20 ~ 800 | 11 |
| QC12Y-10 × 4000 | 10 | 4000 | 1 ° 30" | 12 | 20 ~ 800 | 11 |
| QC12Y-10 × 6000 | 10 | 6000 | 2 ° | 10 | 20 ~ 800 | 15 |
| QC12Y-12 × 2500 | 12 | 2500 | 1 ° 30" | 16 | 20 ~ 800 | 15 |
| QC12Y-12 × 3200 | 12 | 3200 | 1 ° 30" | 14 | 20 ~ 800 | 18.5 |
| QC12Y-12 × 4000 | 12 | 4000 | 1 ° 30" | 14 | 20 ~ 800 | 18.5 |
| QC12Y-12 × 5000 | 12 | 5000 | 1 ° 30" | 7 | 20 ~ 1000 | 30 |
| QC12Y-12 × 6000 | 12 | 6000 | 2 ° | 6 | 20 ~ 1000 | 30 |
| QC12Y-12 × 8000 | 12 | 8000 | 2 ° 30" | 5 | 20 ~ 1000 | 37 |
| QC12Y-16 × 2500 | 16 | 2500 | 2 ° | 16 | 20 ~ 650 | 18.5 |
| QC12Y-16 × 3200 | 16 | 3200 | 2 ° | 12 | 20 ~ 800 | 22 |
| QC12Y-16 × 4000 | 16 | 4000 | 2 ° | 10 | 20 ~ 800 | 30 |
| QC12Y-16 × 6000 | 16 | 6000 | 2 ° | 8 | 20 ~ 800 | 30 |
| QC12Y-20 × 2500 | 20 | 2500 | 2 ° 30" | 5 | 20 ~ 1000 | 30 |
| QC12Y-20 × 3200 | 20 | 3200 | 2 ° 30" | 4 | 20 ~ 1000 | 30 |
| QC12Y-20 × 4000 | 20 | 4000 | 2 ° 30" | 3 | 20 ~ 1000 | 37 |
| QC12Y-20 × 6000 | 20 | 6000 | 2 ° 30" | 3 | 20 ~ 1000 | 45 |
| QC12Y-25 × 2500 | 25 | 2500 | 2 ° 30" | 6 | 20 ~ 1000 | 45 |
| QC12Y-25 × 3200 | 25 | 3200 | 2 ° 30" | 5 | 20 ~ 1000 | 45 |
| QC12Y-25 × 4000 | 25 | 4000 | 2 ° 30" | 5 | 20 ~ 1000 | 45 |
| QC12Y-32 × 2500 | 32 | 2500 | 3 ° | 5 | 20 ~ 1000 | 55 |
| QC12Y-32 × 3200 | 32 | 3200 | 3 ° | 4 | 20 ~ 1000 | 55 |
| QC12Y-40 × 2500 | 40 | 2500 | 4 ° | 5 | 20 ~ 1000 | 75 |
| QC12Y-40 × 3200 | 40 | 3200 | 4 ° | 3 | 20 ~ 1000 | 90 |
| QC12Y-50 × 3200 | 50 | 3200 | 3 ° | 5 | 20 ~ 1000 | 90 × 3 |
| QC12Y-50 × 6000 | 50 | 6000 | 3 ° | 5 | 90 × 5 | |
| QC12Y-60 × 3200 | 60 | 3200 | 3 ° 30" | 5 | 90 × 4 |
